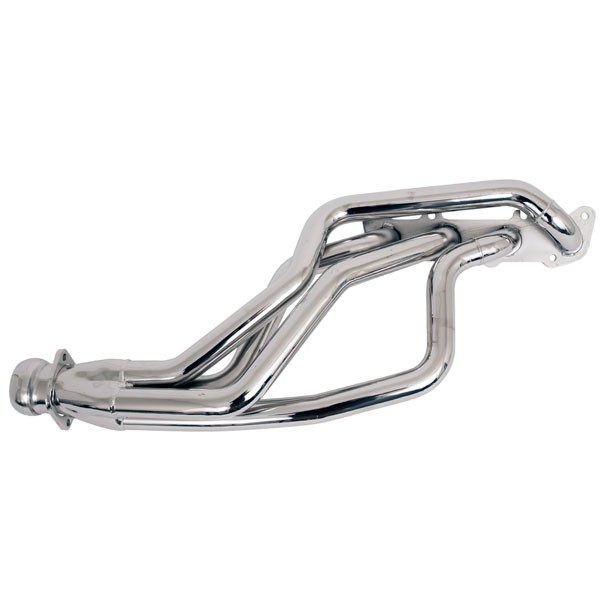

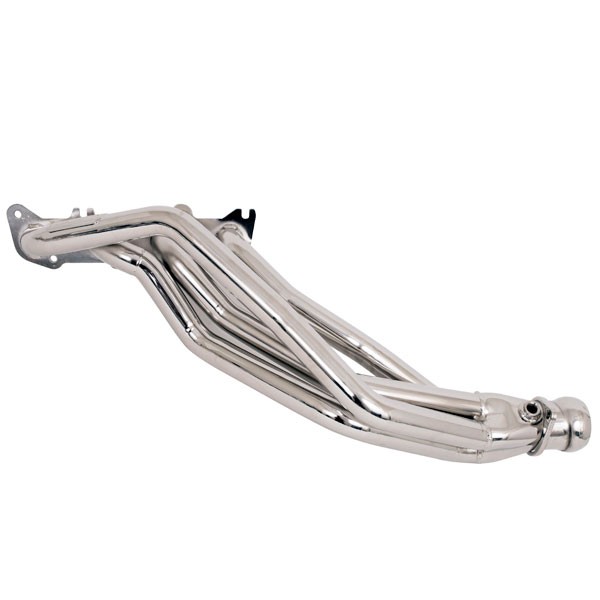

BBK Coyote 5.0 Swap 1-3/4" Chrome Full Length Headers (79-04 Mustang)

BBK Coyote 5.0 Swap 1-3/4" Chrome Full Length Headers (79-04 Mustang)


Market Price $899.99 You save $330 (37%)

Part # BBK-1634

BBK Performance 1634

Ships Within 24 Hours

Availability: In stock



  • Bolt On a 15-20 Horsepower Increase

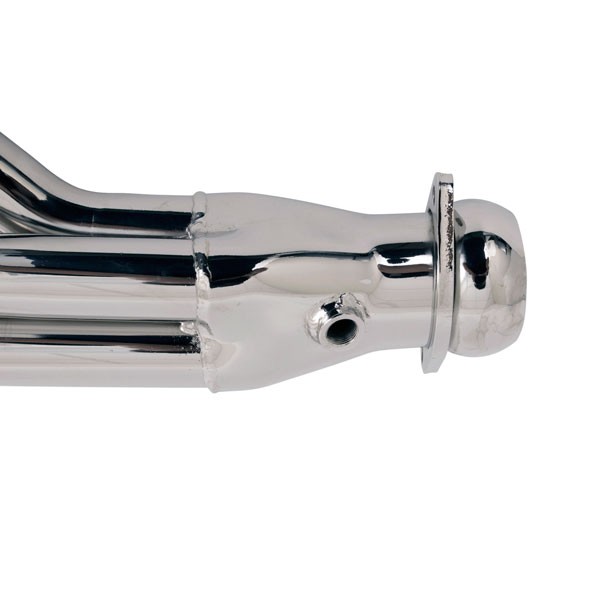

  • Large 1-3/4" Primaries with 3" Collector
  • 16 Gauge Steel Tubing and 3/8" Thick Flanges
  • For Use With BBK-1786 or 1787 Mid Pipes

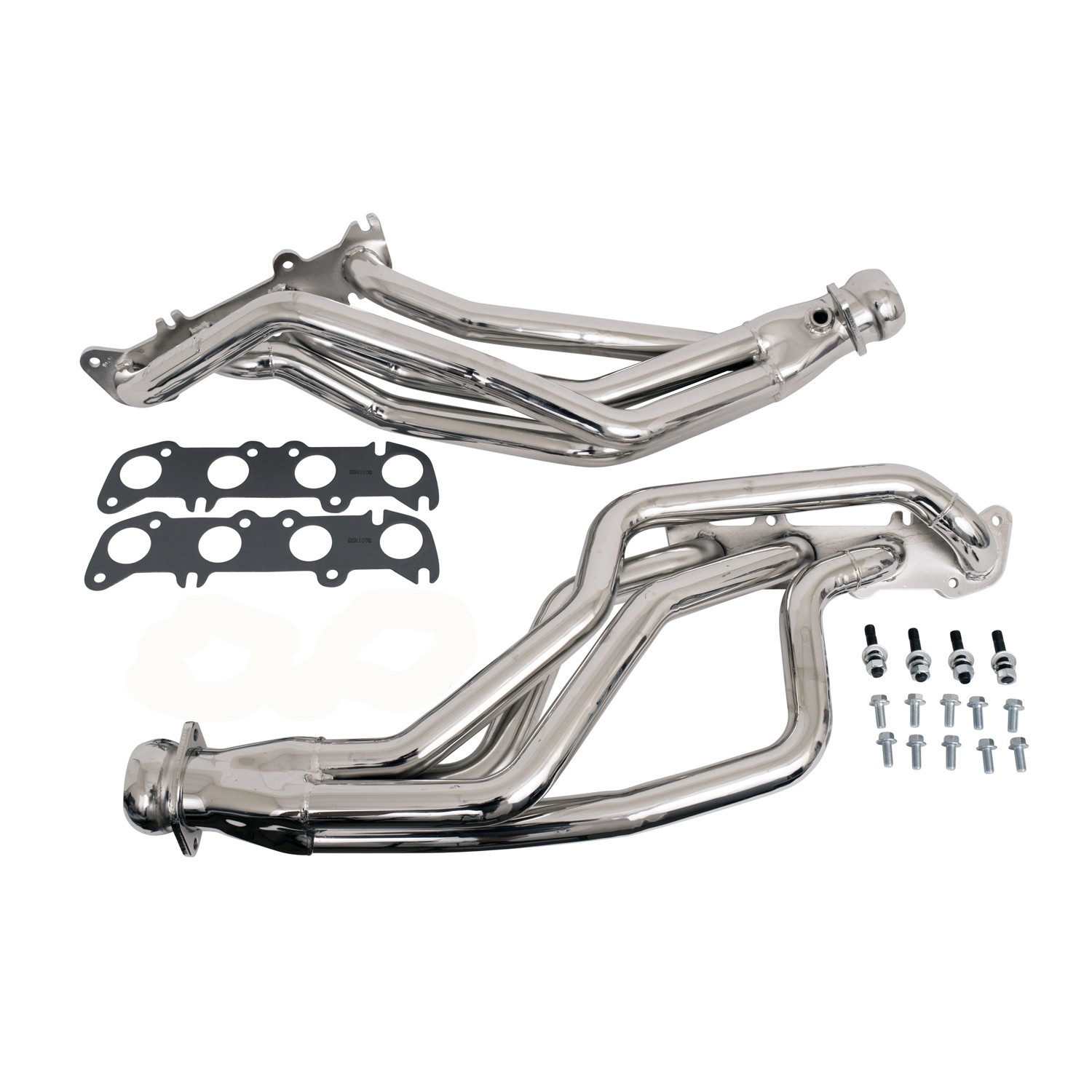

  • Gaskets and Hardware (Gen 1 Header Bolts Only) Included
  • Fits with Manual Transmission and Aftermarket K-Member Only
  • For use when swapping a late model Coyote 5.0 engine into an earlier Mustang
  • Quality Chrome Finish
  • Put a Coyote 5.0 in Your Mustang!
    These BBK Coyote swap headers are constructed from mandrel bent high flow 1-3/4" tubing with 3" collectors making them perfect for both naturally aspirated and boosted builds. BBK Performance full length headers will increase your exhaust flow giving you additional horsepower and torque. These full length headers will help give your Mustang a throaty exhaust note. The chrome plated finish add great show style for those that like to show what they've got.

    BBK Quality

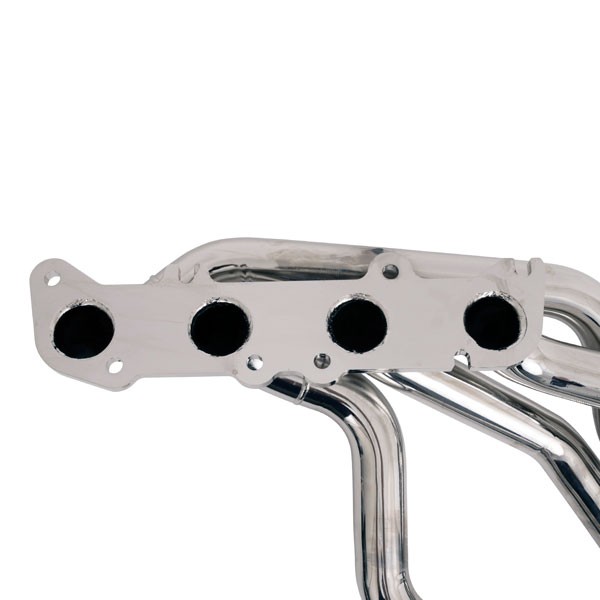

    BBK Performance Coyote swap full length headers are made from 1-3/4" CNC mandrel bent tubing with 3/8" thick die-stamped flanges. The full length primary tube design creates unrestricted airflow for ultimate horsepower gains. These headers are pressure tested to ensure leak free performance.

    Fitment Info
    These Headers were designed using a Maximum Motorsports K member and manual transmission. May not clear with other combinations. For use with BBK Performance short mid pipes

    1979-2004 Mustang Chassis with 2011+ 5.0L Coyote Engine Swap
    Designed using a Maximum Motorsports K-member and manual transmission. May not fit other configurations without modification. 3" Matching Short X pipes with or with out converters are also available to connect up to the Cat back Exhaust (Minor Exhaust Fabrication Required) Because they are 3 inch you will need a new 3" Cat-back exhaust system or modify the stock Cat-back to fit. We highly recommend New 3" system. 87-93 Mustang GT only 3" Cat Back Flowmaster Part# 17396 was used with required modifications

    Click Here To See Muscle Mustangs & Fast Fords Installation Article

    Please Note:
    These BBK Long Tube Headers require the use of Front O2 wire harness extensions - these are not included and are recommended for installation Please check the GEN Coyote engine that you have and order the correct harness - GEN1 Coyote 11-14 requires Part # 1112 - GEN2 Coyote 15-17 requires Part # 1119 - GEN3 Coyote 18-19 requires Part # 1121


    Josh K 9/9/2014
    The Best Headers for the job These headers took most of the headache out of my coyote swap. They were designed around the Maximum Motorsport K-member so that was also good as i love Maximum motorsports products. I am also familiar with BBK products so i knew i was getting quality, the sound is great and i used the off road version mid pipe to make it loud and proud, I went with the chrome version to save some cash, everything bolted right up with no modifications. I am happy with the product and would recommend them for any coyote swap.
    Coyote Chris 9/8/2014
    None Better ! I read the story of the coyote swap in hot rod or some other magazine a few years back and knew that this was a project i wanted to do on my fox body. BBK led the development on these headers so they could be used with the maximum motorsports front K member (which i already had) - I bought these swap headers and the mid pipe for my installation and it all bolted up super easy - I think BBK make a great product and i am glad they are a part of my project coyote fox swap.
