BBK Coyote 5.0 Swap 1-3/4" Coated Full Length Headers (79-04 Mustang)

BBK Coyote 5.0 Swap 1-3/4" Coated Full Length Headers (79-04 Mustang)


Market Price $1,159.99 You save $460 (40%)

Part # BBK-16340

BBK Performance 16340

Ships Within 24 Hours
10+ In Stock

Availability: In stock



  • Bolt On a 15-20 Horsepower Increase

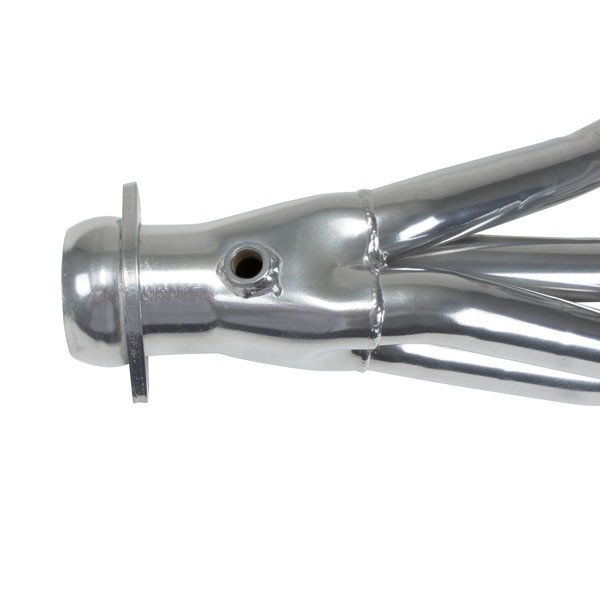

  • Large 1-3/4" Primaries with 3" Collector
  • 16 Gauge Steel Tubing and 3/8" Thick Flanges
  • For Use With BBK-1786 or 1787 Mid Pipes

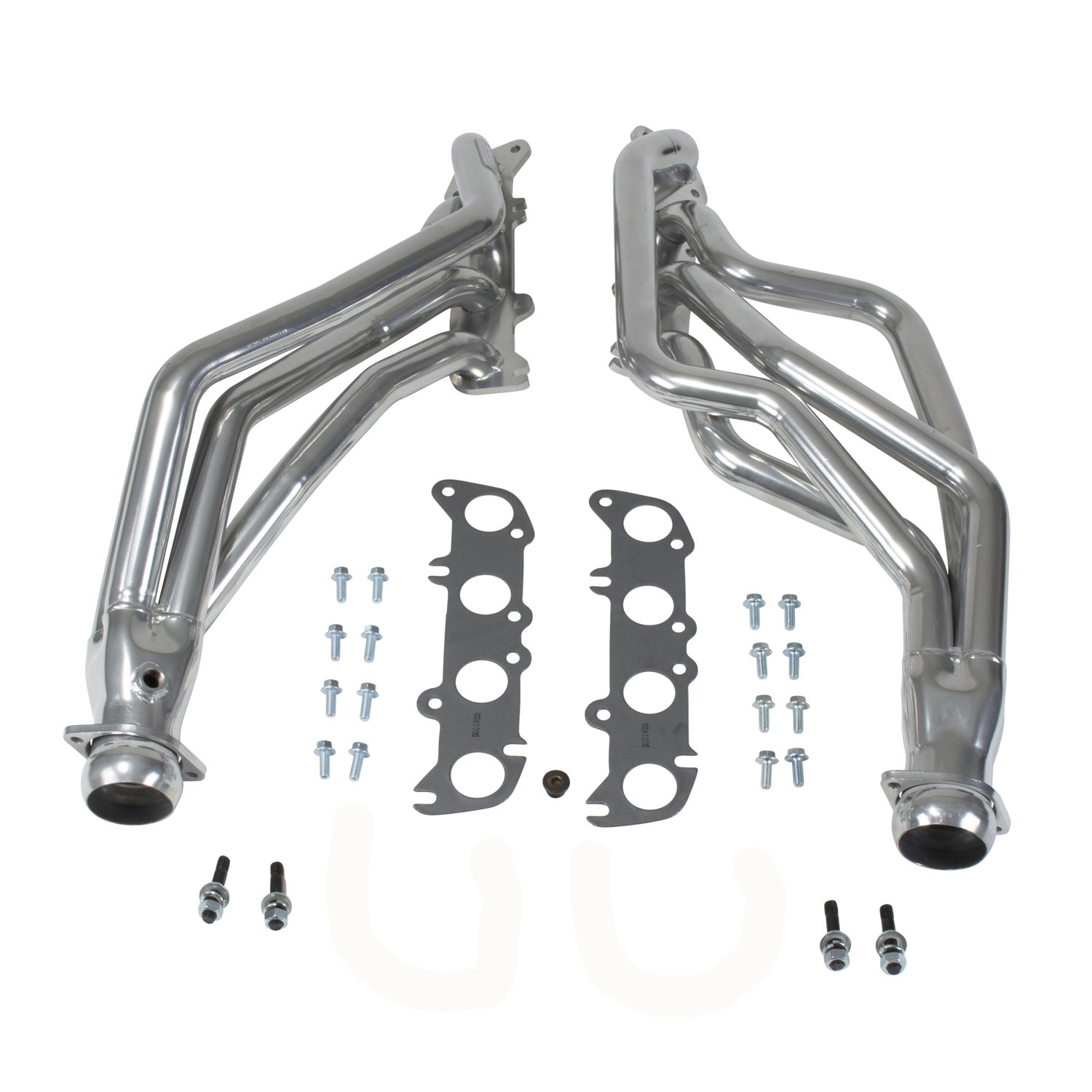

  • Gaskets and Hardware (Gen 1 Header Bolts Only) Included
  • Fits with Manual Transmission and Aftermarket K-Member Only
  • For use when swapping a late model Coyote 5.0 engine into an earlier Mustang
  • Silver Ceramic Coated Finish
  • Put a Coyote 5.0 in Your Mustang!

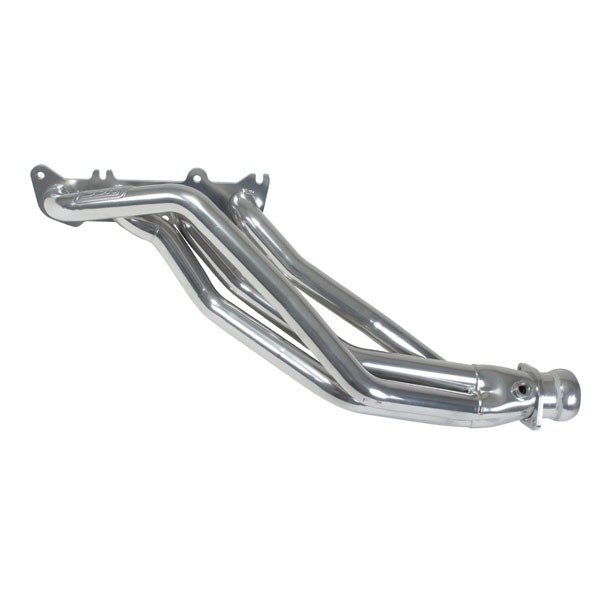

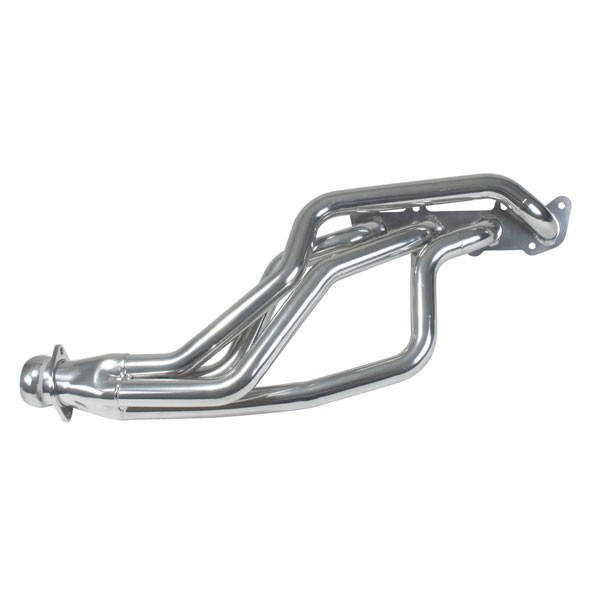

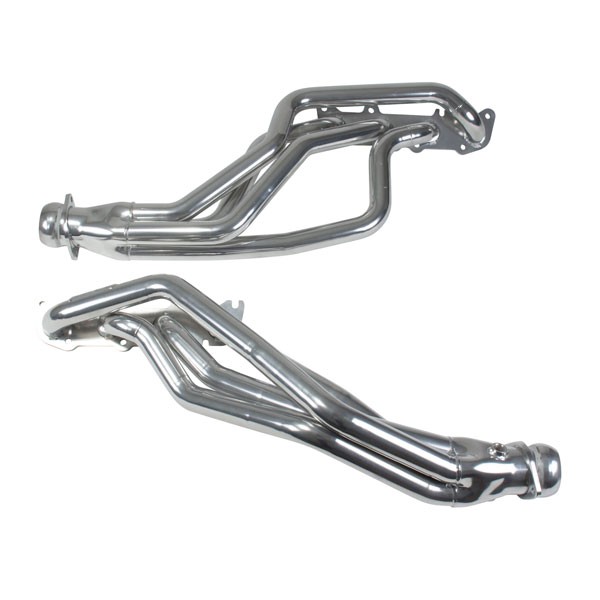

    These BBK Coyote swap headers are constructed from mandrel bent high flow 1-3/4" tubing with 3" collectors making them perfect for both naturally aspirated and boosted builds. BBK Performance full length headers will increase your exhaust flow giving you additional horsepower and torque. These full length headers will help give your Mustang a throaty exhaust note. The ceramic coated finish adds corrosion resistance and helps hold in heat for lower underhood temperatures and more power..

    BBK Quality

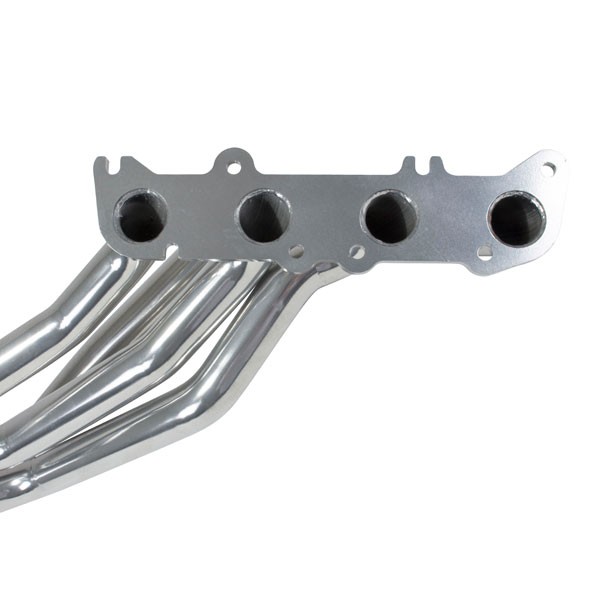

    BBK Performance Coyote swap full length headers are made from 1-3/4" CNC mandrel bent tubing with 3/8" thick die-stamped flanges. The full length primary tube design creates unrestricted airflow for ultimate horsepower gains. These headers are pressure tested to ensure leak free performance.

    Fitment Info
    These Headers were designed using a Maximum Motorsports K member and manual transmission. May not clear with other combinations. For use with BBK Performance short mid pipes

    1979-2004 Mustang Chassis with 2011+ 5.0L Coyote Engine Swap
    Designed using a Maximum Motorsports K-member and manual transmission. May not fit other configurations without modification. 3" Matching Short X pipes with or with out converters are also available to connect up to the Cat back Exhaust (Minor Exhaust Fabrication Required) Because they are 3 inch you will need a new 3" Cat-back exhaust system or modify the stock Cat-back to fit. We highly recommend New 3" system. 87-93 Mustang GT only 3" Cat Back Flowmaster Part# 17396 was used with required modifications

    Click Here To See Muscle Mustangs & Fast Fords Installation Article

    Please Note:
    These BBK Long Tube Headers require the use of Front O2 wire harness extensions - these are not included and are recommended for installation Please check the GEN Coyote engine that you have and order the correct harness - GEN1 Coyote 11-14 requires Part # 1112 - GEN2 Coyote 15-17 requires Part # 1119 - GEN3 Coyote 18-19 requires Part # 1121


    Andrew M 9/9/2014
    Best headers for this swap Decided to take the leap and make this swap happen in my 93 coupe. Plenty of clearance around the maximum K member. BBK did their homework on these, good solid construction and a real good fit. I also used their 3" X pipe to bolt up to my flow master 40 series and 3" duals all the way back! Car sounds amazing...FYI - the ceramic finish is the only way to go !
